Let's create a deadly MPAGD Acid Drop

Updated: Dec 5, 2021

Another request from the MPAGD Facebook group a tutorial that covers "the old faithful dripping water / acid that kills on contact?"

There's a number of approaches you can take to achieve an acid drop, I quite like this one, it's a little expensive bytewise since it uses quite a few sprite frames, but you could adapt it with less frames and then alter the timings. But I think this looks pretty nice:

First we need to create a sprite, the sprite animation falls into three parts:

1) The drip grows on the ceiling

2) The drip drops to the ground

3) The drop splashes on the floor

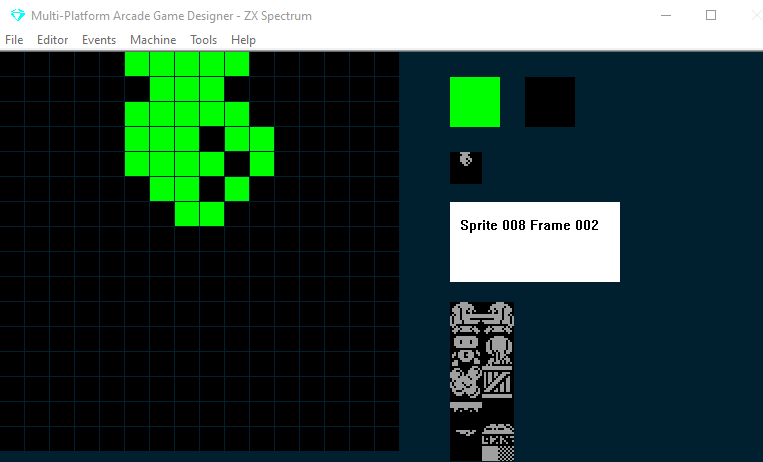

Here's my sprite:

Sequence 1 - the drip grows on the ceiling:

Sequence 2 - The drip drops to the ground

Sequence 3 - The drop splashes on the floor

So, were just going to use a single, multi-frame sprite and then write some code that will handle what should happen during each sequence. We won't use the ANIMATE command, instead we will use a timer variable and increment the frame number in the code at the right times.

Then, after a drop has hit the ground and the splash sequence has completed, we will reset the Y value of the drop, reset the frame to zero...and start all over again.

We'll use the DIRECTION sprite variable to control the sequences

We'll use SETTINGA as a timer variable

and we'll store the initial y value of the Sprite in SETTINGB so that we can restart after the acid drop splashes on the floor and so a new drop grows on the ceiling

Here's the code to (acid) drop into your sprite event:

Option: Increase the speed of the drop

If you've read my Deep Dive into the JUMP command in the beginners guide, you'll be aware that we can alter the speed of a jump or fall through the air. This is achieved using the sprite's JUMPSPEED variable. To increase the speed of the fall, simply increase Jumpspeed

For example, you could add this to the DROP ACID! routine....

IF DIRECTION = 2            ; DROP ACID!
   IF CANGODOWN             ; if we haven't hit the ground
      FALL                  ; drop down
      ADD 5 TO JUMPSPEED    ; increase the speed of the fall
   ELSE                     ; if we've hit the ground
      LET DIRECTION = 3     ; start the HIT THE GROUND routine
      ADD 1 TO FRAME        ; but increment the frame first

OPTION: Create a pattern for the drops

If you want to get even more clever, you could alter the speed with which the drops grow on the ceiling and the speed of the fall by using a couple of variables and READ them in from a DATA statement, this way the drops would work on a pattern rather than always growing and falling at the same speed each time.
